Learn about Dashboard

Dashboard——According to the type of login account or associated merchants, it summarizes the relevant data in the monitoring and maintenance process of the corresponding plant. It can support selecting “My Watchlist" or “Status Differentiation" to view the relevant plant data dashboards. You can also filter and view the corresponding plant by date Data variables, in order to facilitate your quick understanding and use of data charts and ranking statistics, to meet your overall monitoring and analysis of power plants.

Business usage scenarios

• As an operation and maintenance provider or installer, it is necessary to understand the power generation status and device status of the associated plant under its own company name, and analyze and maintain according to the summarized plant data, so as to achieve the purpose of reducing labor costs and improving power generation efficiency.
• As an investor, it is necessary to monitor the power generation conversion process for the power plants that have been added. Using the data dashboard, you can quickly check the power generation data status of all power plants, which is convenient for investors to predict the risk and analyze the benefits of all power plants.
• As an operation and maintenance specialist, he/she needs to quickly and clearly understand the work task at hand, check the basic information of each plant and analyze the causes of the plant alarm during the processing, and timely repair to avoid the loss of power generation.

Functional Overview

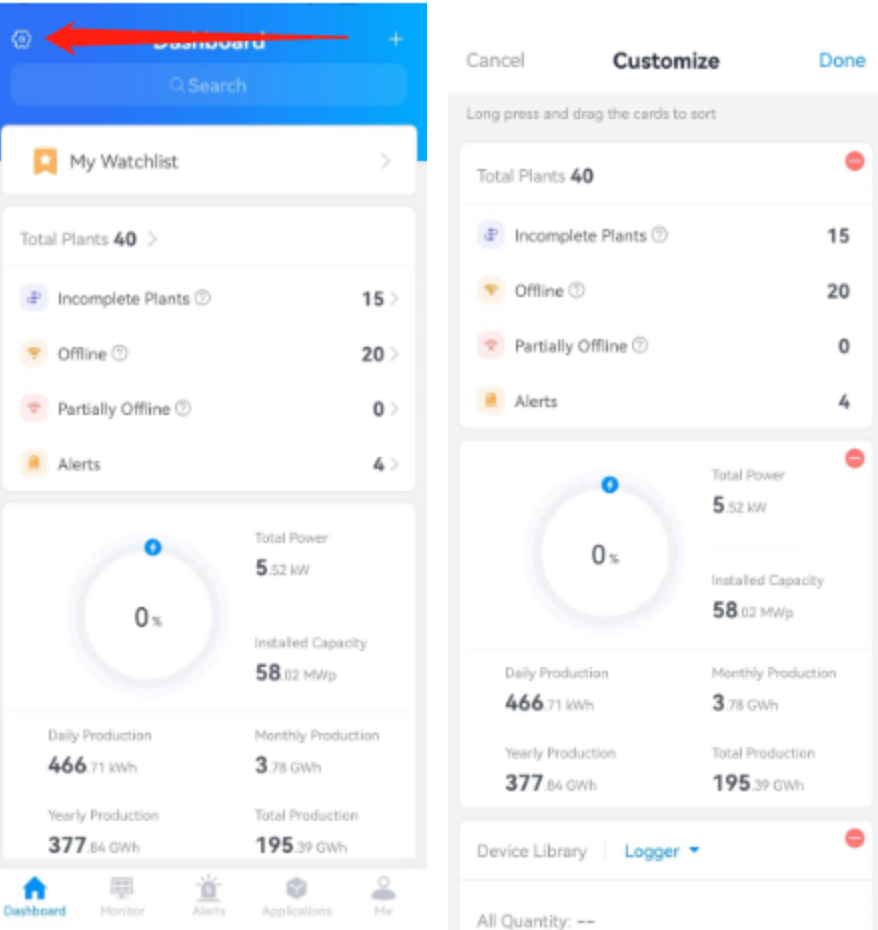

• Customize： When you want to adjust the order of the Kanban, you can click the【Setting】button at the upper left corner to jump to the “Customize" page. You can sort by long pressing and dragging the cards. You can select to display or hide the panels displayed in the data Kanban as needed. After selecting, click the【Done】button to complete the corresponding setting operation, as shown in the figure:


• Create a Plant： On the dashboard interface, you can directly operate the “Create a Plant" function. Click the【+】button on the upper right corner and select "Create a Plant". You can go to the page and improve the information of the plant according to the prompts. See【Create a Plant】for the specific operation process

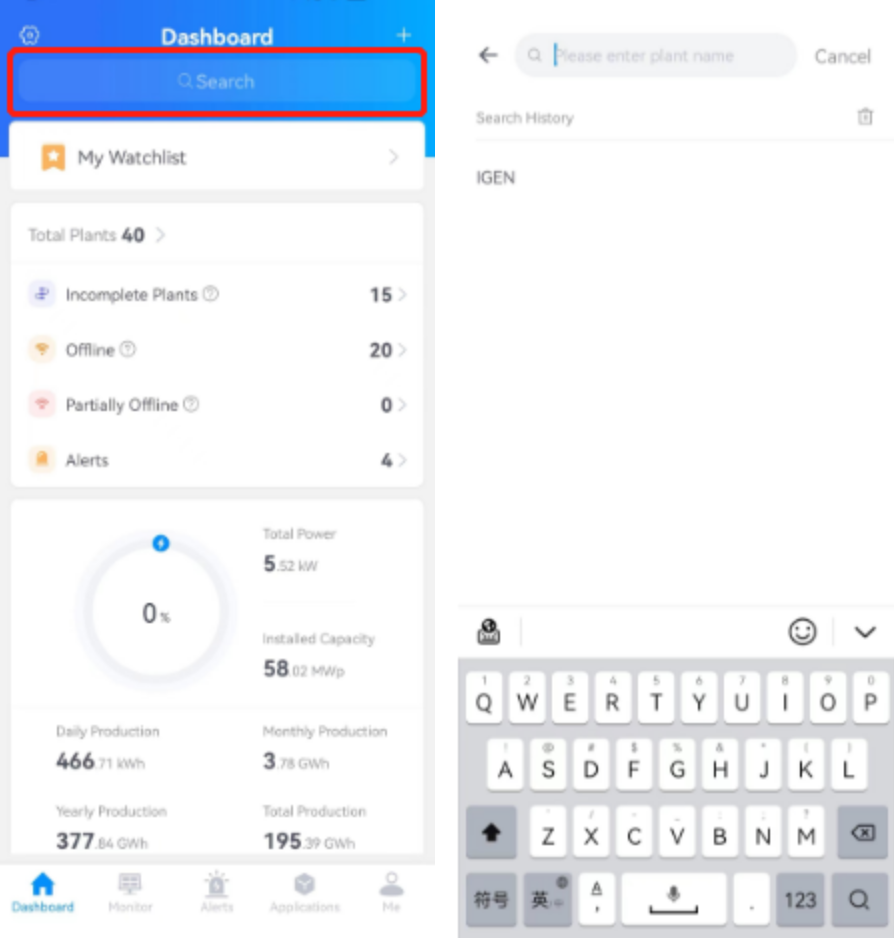

• Search ： Select【Search】to jump to the page and enter the plant name to query the plant data. The system will perform a fuzzy query based on the plant name you entered to quickly search for the corresponding plant data information. You can also quickly search through the historical records, as shown in the figure:

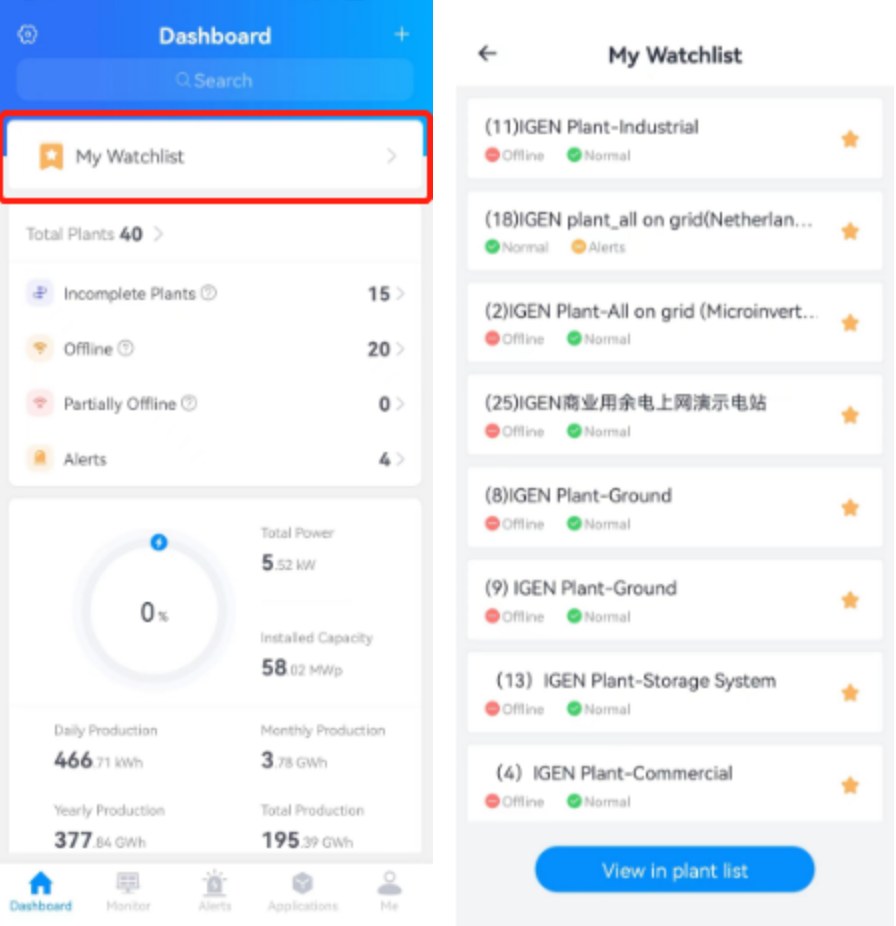

• My Watchlist： Select and click【My Watchlist】to jump to the “My Watchlist" page, which supports quick viewing of the information of the plant selected for attention in the plant list, as shown in the figure:

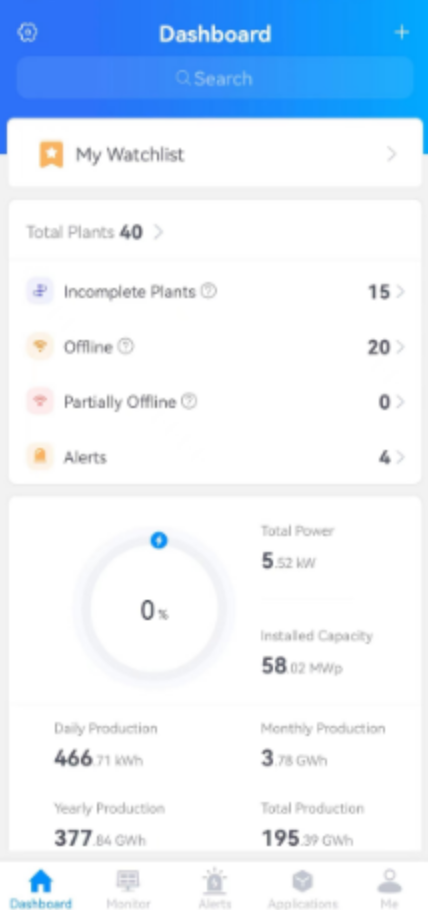

Dashboard

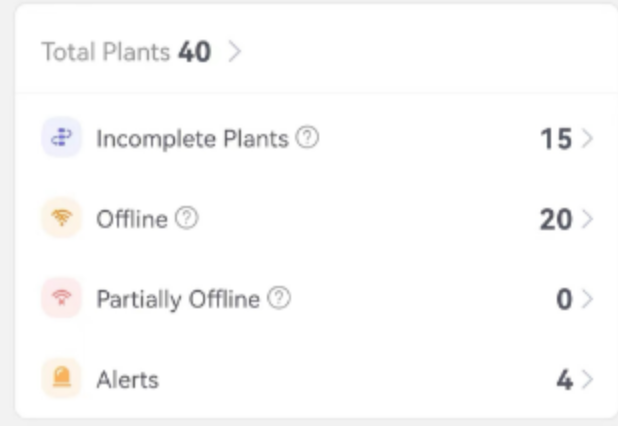

1. Plant Status

• Incomplete Plants： Incomplete Plants refers to the condition that there is no device in the plant or that the device has never uploaded data
• Offline Plants： Offline Plants means that all device in the plant is offline
• Partially Offline Plants： Partially Offline Plants means that some device under the plant is offline
• Plants with Alerts： Plants with Alerts refers to the current device in the plant is in alarm status

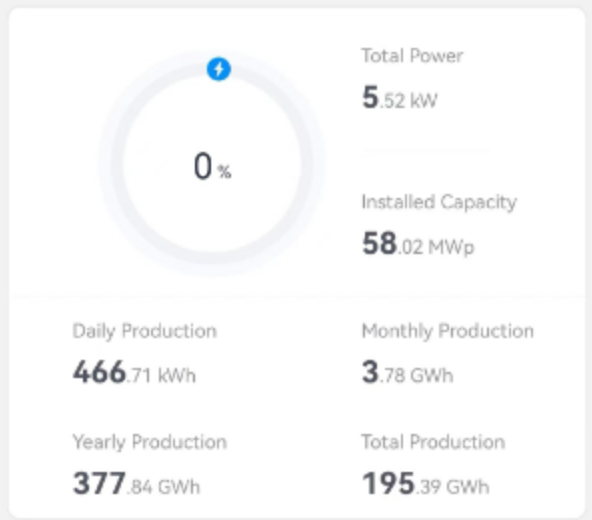

2. Production Overview

• Total Power： The sum of the generated power of all power plants under the current user's data authority
• Installed Capacity： The sum of the installed capacity of all power plants under the current user's data authority
• Daily Production： The sum of the daily power generation of all power plants under the current user's data authority
• Monthly Production： The sum of the monthly power generation of all power plants under the current user's data authority
• Yearly Production： The sum of the power generation of all power plants in the current year under the current user's data authority
• Total Production： The sum of the cumulative power generation of all power plants under the current user's data authority

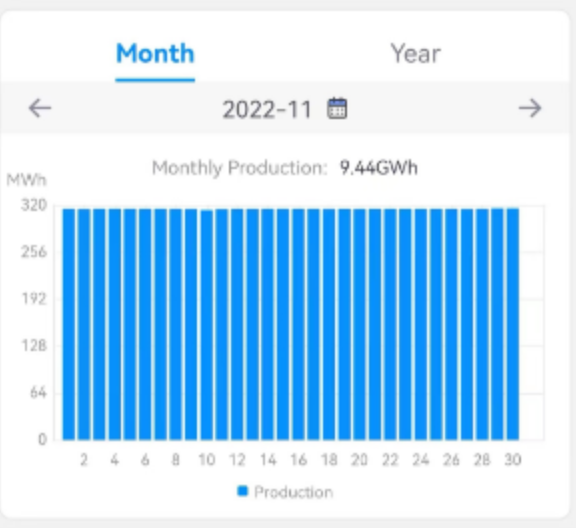

3. Historical Production

• Year/Month filter： Select the month/year switching function above the data, which supports you to view the power generation history data of different dimensions according to the month/year. If you need to query a specific month or year, you can click the date option box to select a specific month or year to view the data variables

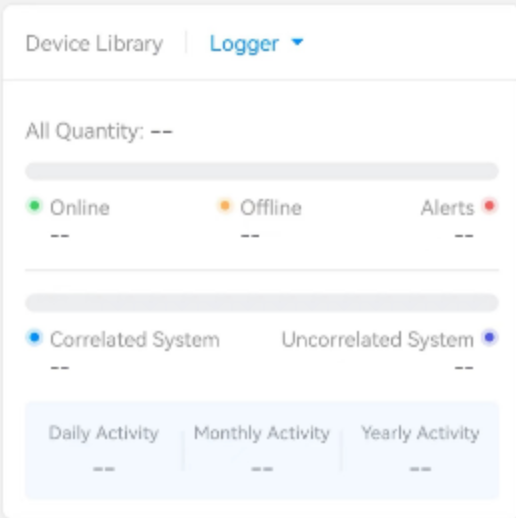

4. Device Library Status

• All： The total number of all devices under the current user account data permission
• Online： Devices with data upload records in the last 15 minutes
• Offline： Devices that have no data upload records in the last 15 minutes
• Alerts： Devices that have alarmed in the last 5 minutes
• Daily Activity： The number of devices with data upload records in the merchant's time zone on that day
• Monthly Activity： The number of devices with data upload records since the 1st of the month in the merchant's time zone
• Yearly Activity： The number of devices with data upload records starting from January 1 of the current year in the merchant's time zone
• Uncorrelated System： The number of devices currently not associated with systems such as plant
• Correlated System： The number of devices currently associated with systems such as plant
• Filter by device type： Click the device type option box in the upper right corner of the dashboard, and the system defaults to the "Logger" device type for data summary display. The device types include Logger, inverter, meter, battery, component, and combiner box. You can switch according to your needs View the corresponding device status data overview for the corresponding type
