The【Plants】module can summarize and display the added plant data information for management. It supports plant search, adding plant, filtering/parameter selection, viewing plant details, paying attention to plant, more and other related functions and operations, so that you can manage and view the data of your own plant.

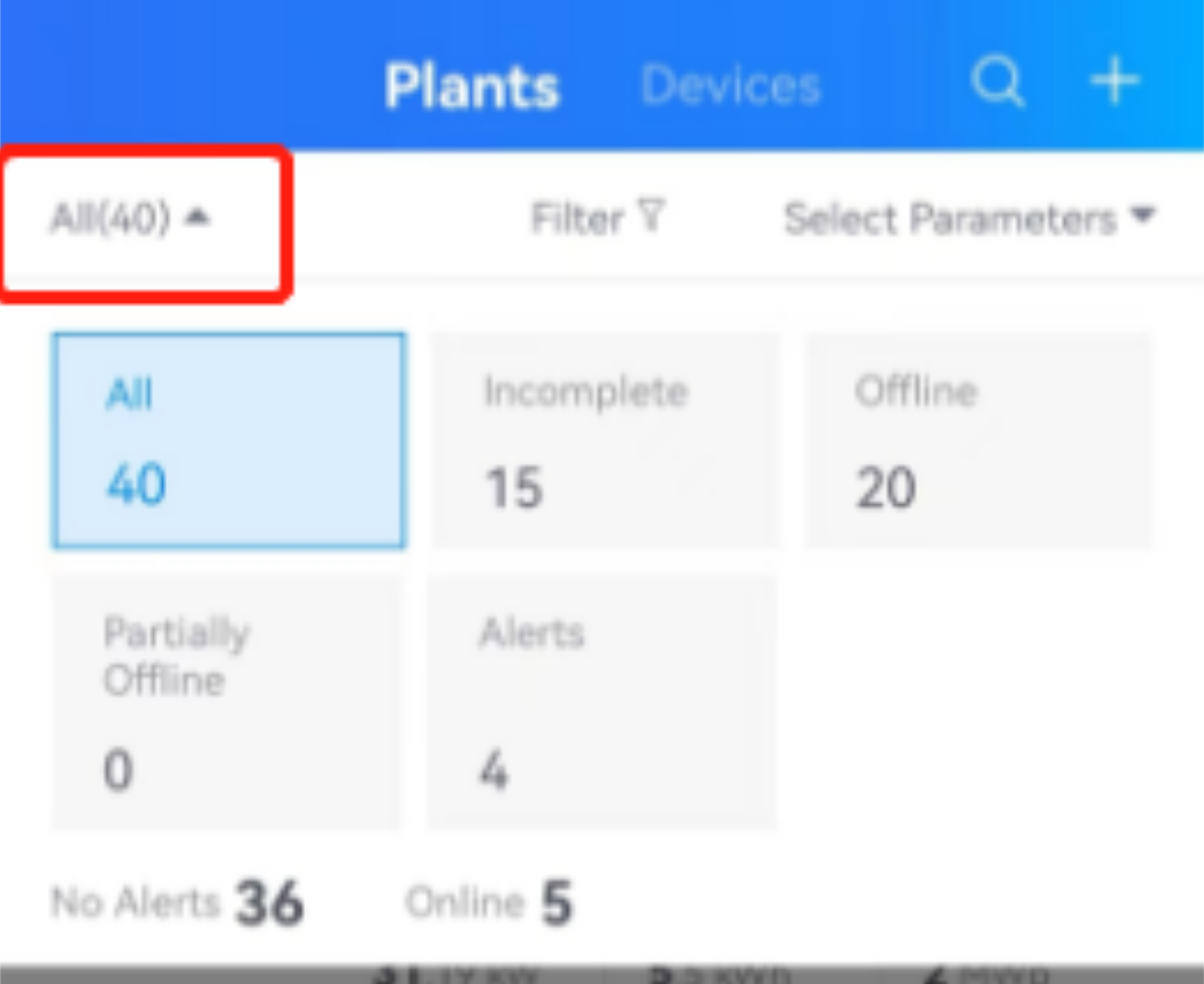

Overview of plant status

• AII： All refers to the number of all plant that have been added under the data authority of the current logged in user
• Incomplete： Incomplete refers to the situation that there is no device under the plant or the device has never uploaded data
• Offline： Offline means that all devices under the plant are offline
• Partially Offline： Partially Offline means that some devices under the plant are offline
• Alerts： Alerts means that there are devices in the current plant that are in an alarm state
• Online： Online refers to the state of the plant where there is no offline device in the plant
• No Alerts： No Alerts refers to the state of the plant where there are no offline devices in the plant

Functional Overview

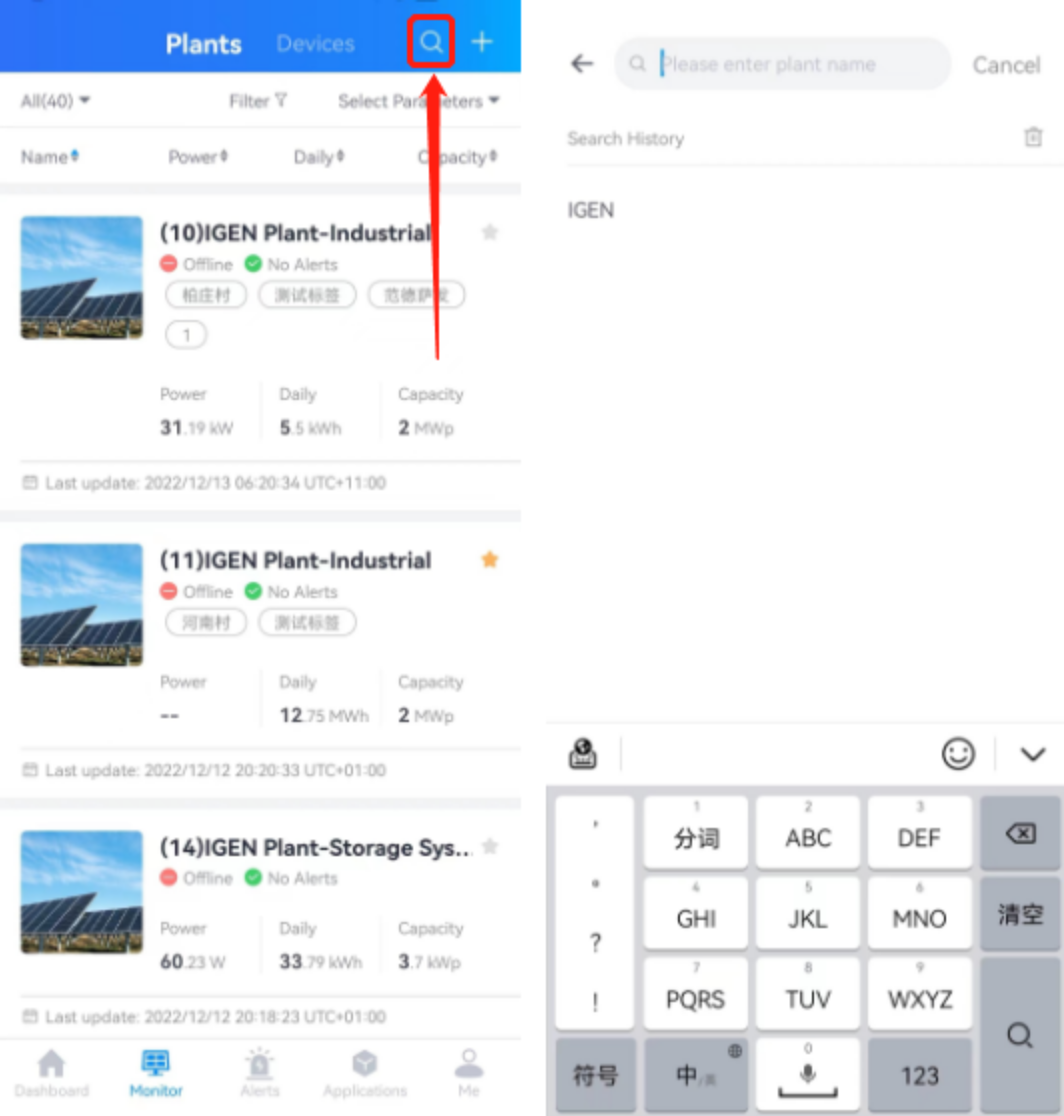

• Search Plant： Select the【Search】icon at the upper right corner, and jump to the page to enter the name of the plant to query the plant data. The system will conduct a fuzzy query based on the name of the plant you entered, so as to quickly search the corresponding plant data information, or through the history, as shown in the figure:


• Create a Plant： In the Plants interface, you can also directly operate the "Create a Plant" function. Click the【+】button at the upper right corner to jump to the page and complete the plant information according to the prompts. See the【Create a Plant】for the specific operation process

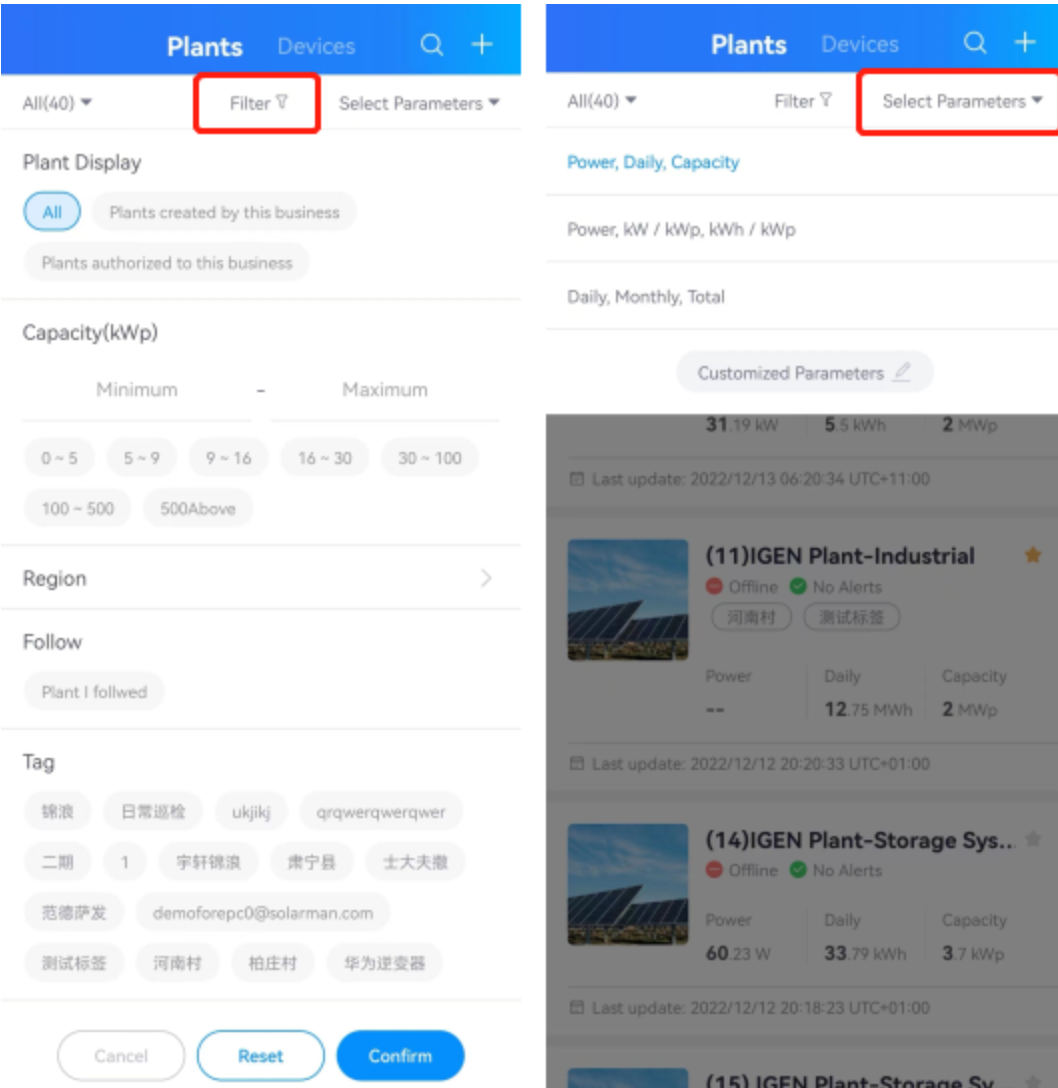

• Filter/Select Parameters： In the Plants interface, you can quickly filter plant data by selecting filter items through the【Filter】function, and click【Select Parameters】to select different parameters to intelligently sort plant data and support free combination of parameters, thereby helping users find and browse plant information. as the picture shows:


• Plant Detail： Click the corresponding plant data in the data list, the page will jump to the details page of the plant, you can see the detailed information of the plant and perform corresponding operations on this page, including single plant data dashboard, device, alarm, about the plant, authorization information and other modules corresponding to the detailed information of the plant, as shown in the figure:

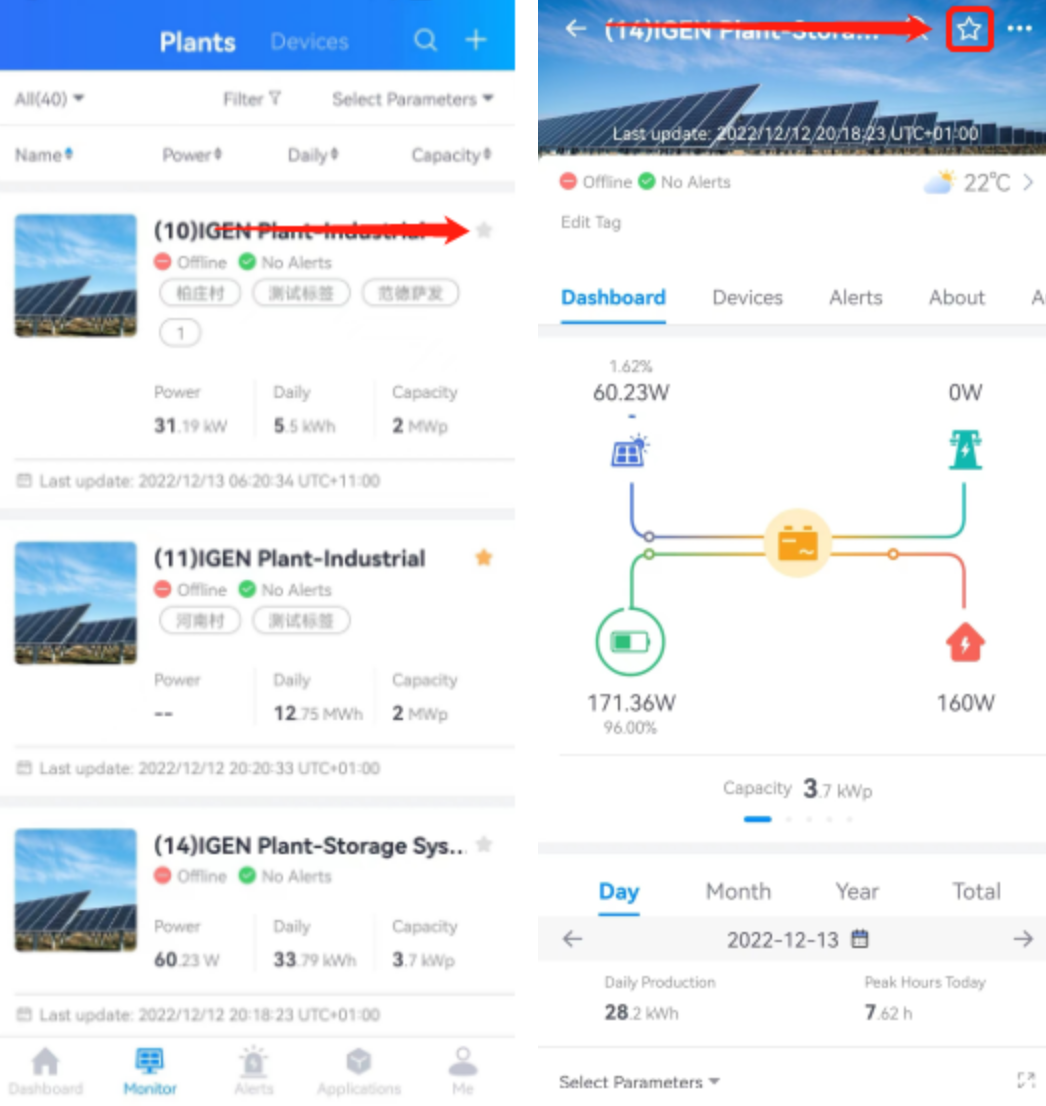

• Follow Plant： 【Follow】will be displayed in the upper right corner of the plant data that has been added in the data list and the plant detail page. Click the【Follow】button to mark the plant, and click it again to cancel the mark, so that it is convenient for subsequent quick viewing of plant information, such as As shown in the figure:

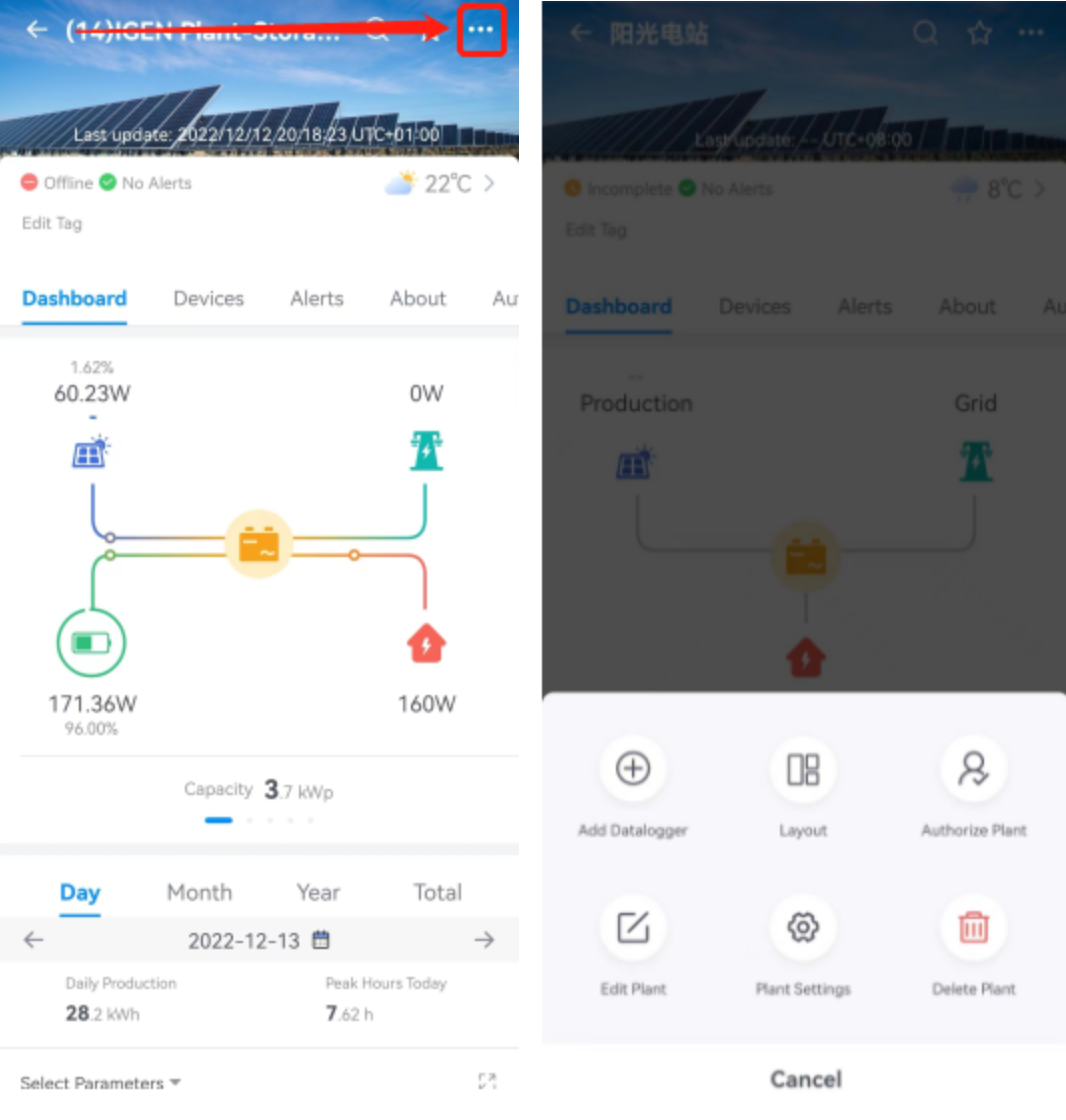

• More： In the plant detail interface, if you need to select other more uses, you can select【More】in the upper right corner, and a pop-up window will appear on the page, which supports adding date logger, system layout, authorized power plants, editing power plants, power plant settings, and deleting power plants, etc. The function operation is convenient for users to maintain and manage the plant information, as shown in the figure:
