【New Dashboard of Plant】Updated a number of features and optimized the interface design to enhance the installer's user experience when viewing power plant data.

1、 More flexible data presentation logic

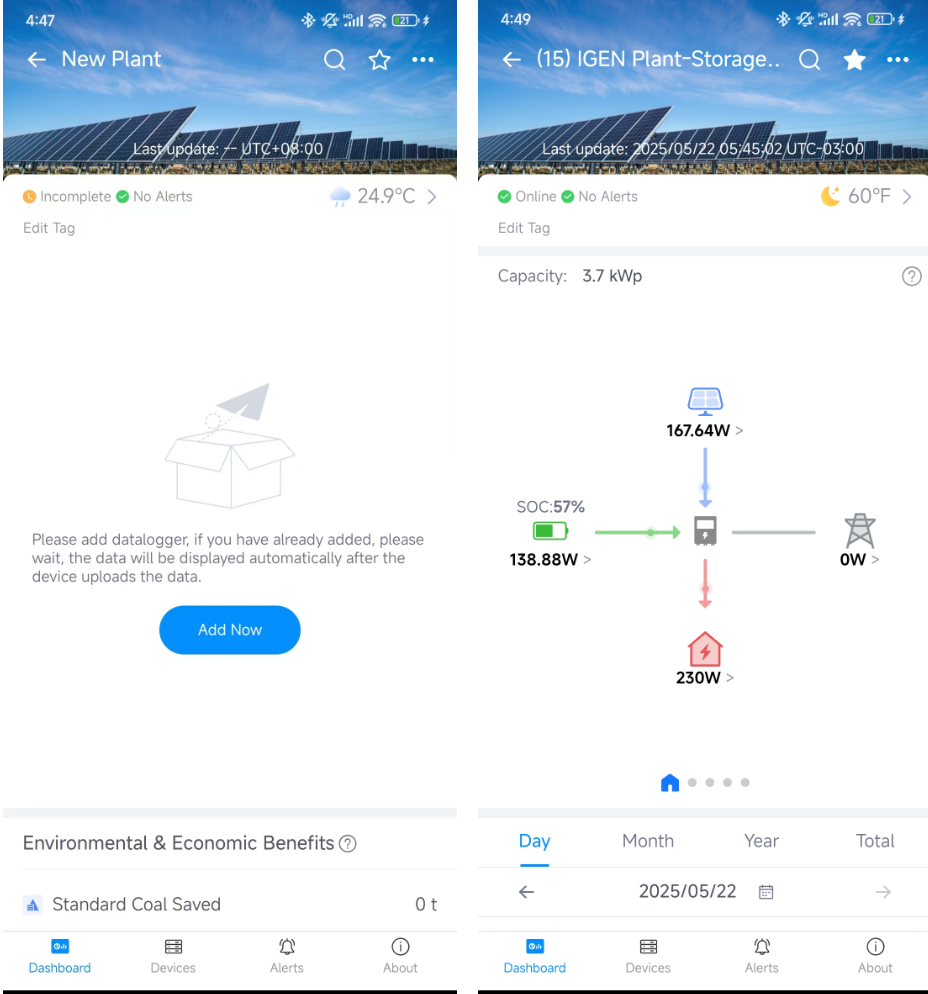

When the system type is “PV+Grid+Consmption+Storage”, the new plant dashboard will no longer restrict which parameters are to be displayed, by default all the data are empty, the system will display the parameters that should be displayed according to the actual situation of the uploaded data.

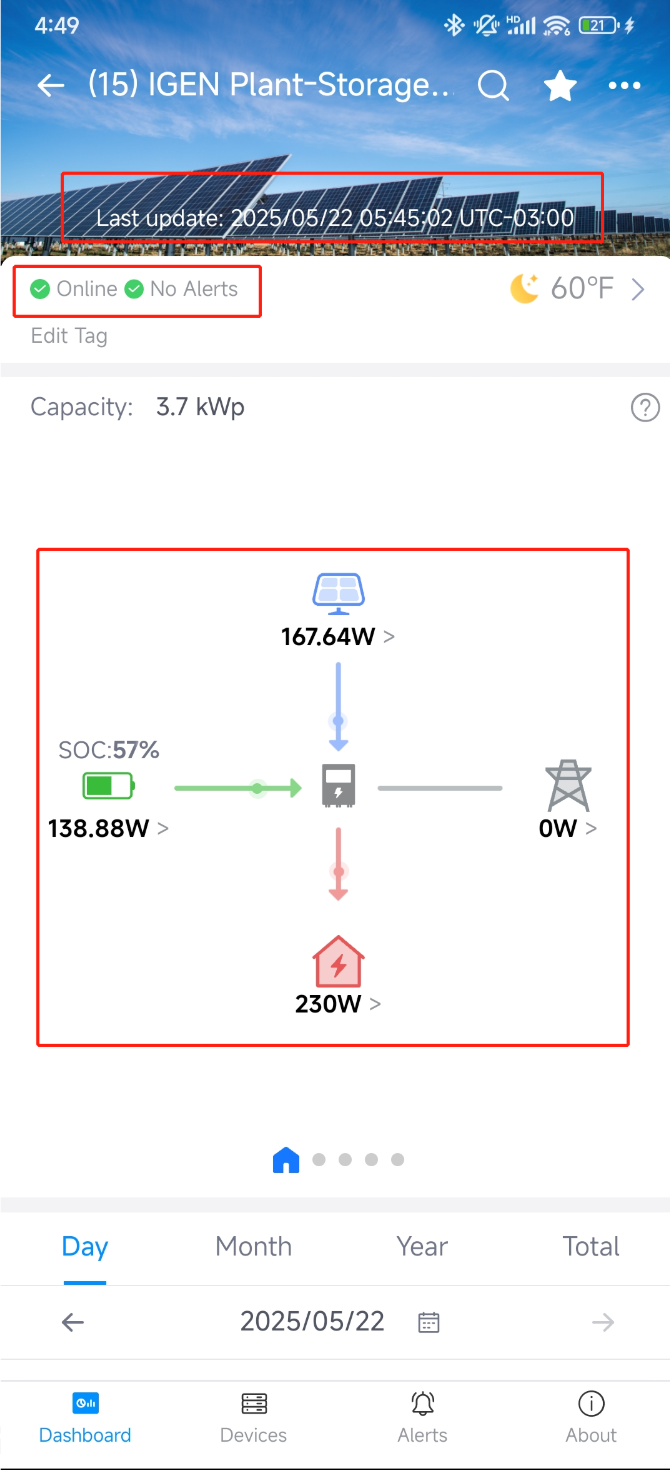

2、 Faster real-time data updates

The power data, flow status, SOC within the flow map, communication status, alarm status and last update time will be pushed in a change-as-you-go mode, so that users can see the latest data without refreshing the interface, and the latest data can be seen within 60s after the device uploads the data (the device uploads the data once every 5 minutes).

3、 Richer presentation of flow chart data

This version adds 20 new parameters, especially upgraded for resident storage plant, including

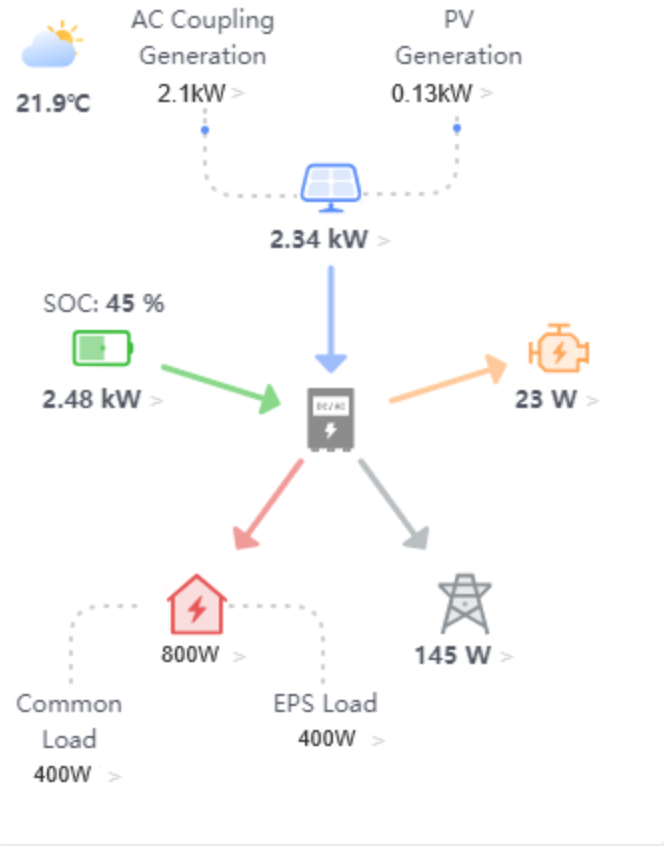

1) The flow diagram supports 2 levels of data display, such as 1 level for PV generation, 2 levels for AC coupling generation and PV generation, 1 level for consumption, and 2 levels for common loads and EPS loads

2) The system supports data auto-completion, for example, if there is AC coupling power and PV generation power, the SOLAR Production Power will be automatically calculated to ensure that the overall data logic is closed loop.

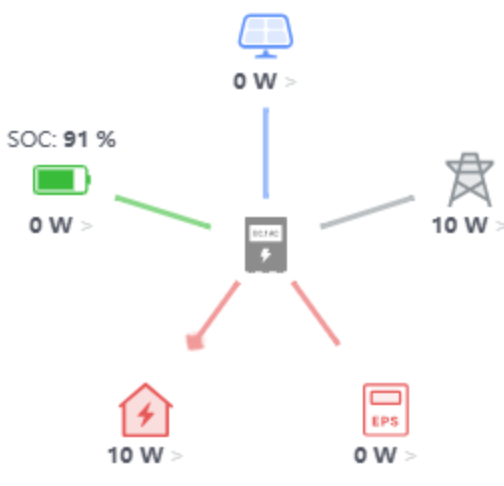

Note: Upgrade 1) and Upgrade 2) depend on the inverter protocol support, currently only in some brands of inverters on the complete embodiment, other brands of inverters will not be embodied, will be in accordance with the absence of the 1, 2 level of the way to display

3) All elements on the flow diagram support historical data viewing, including but not limited to AC coupling power, AC coupling production, generator power, generator production, EPS load power, EPS load power, etc.

4、 Add the explanation of how the new data are calculated

After this version update, the system will explain the data source and specific calculations for each parameter, which will be more transparent than the past practice of hiding the logic, and will also reduce customer questions.

5、 Chart Experience Optimization

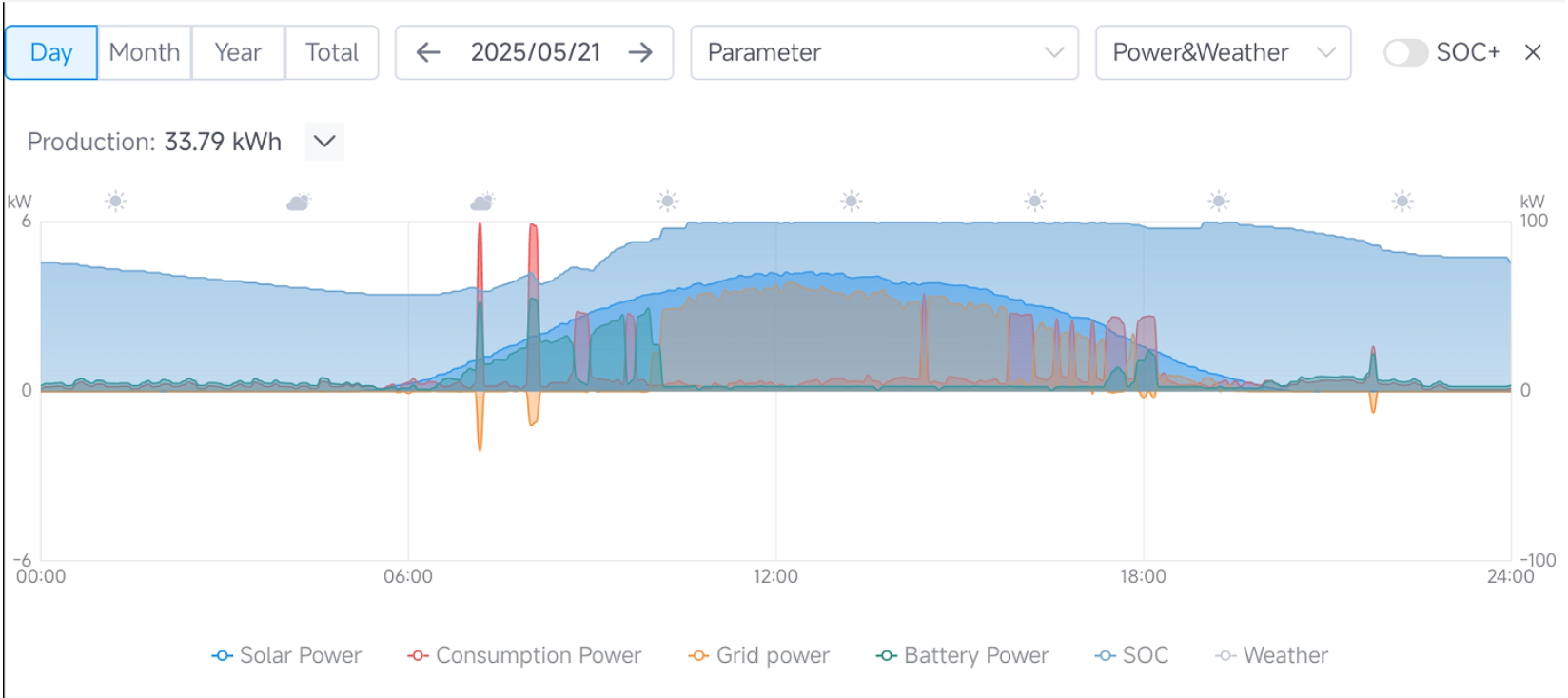

Some optimizations have been made to the charts in this release, including the addition of a new SOC merge/non-merge display toggle, and a landscape mode that makes it easier to view the data.

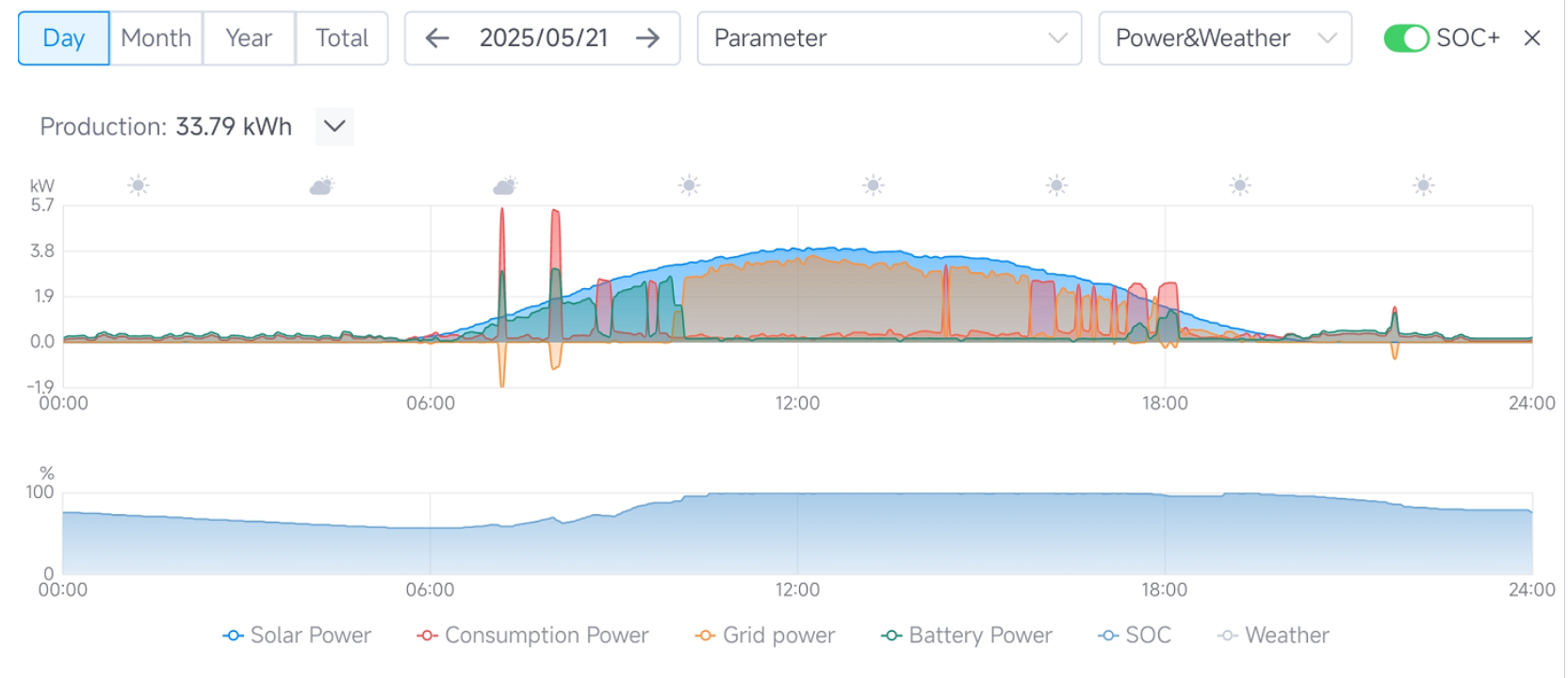

SOC Separate Display
