Add Datalogger【SOLARMAN Business APP】

After completing the creation of online plant data, you need to add a datalogger to your plant to complete device access. The datalogger can collect the operating data of photovoltaic device and upload it to the server. Then you can view the power plant data on the server through the SOLARMAN Business APP application. Through these data, you can clearly understand the operation status and expected income of the photovoltaic plant, and timely determine whether the plant is in normal operation, so as to avoid property losses due to device failure and other reasons as much as possible.

Entrance to Add Datalogger

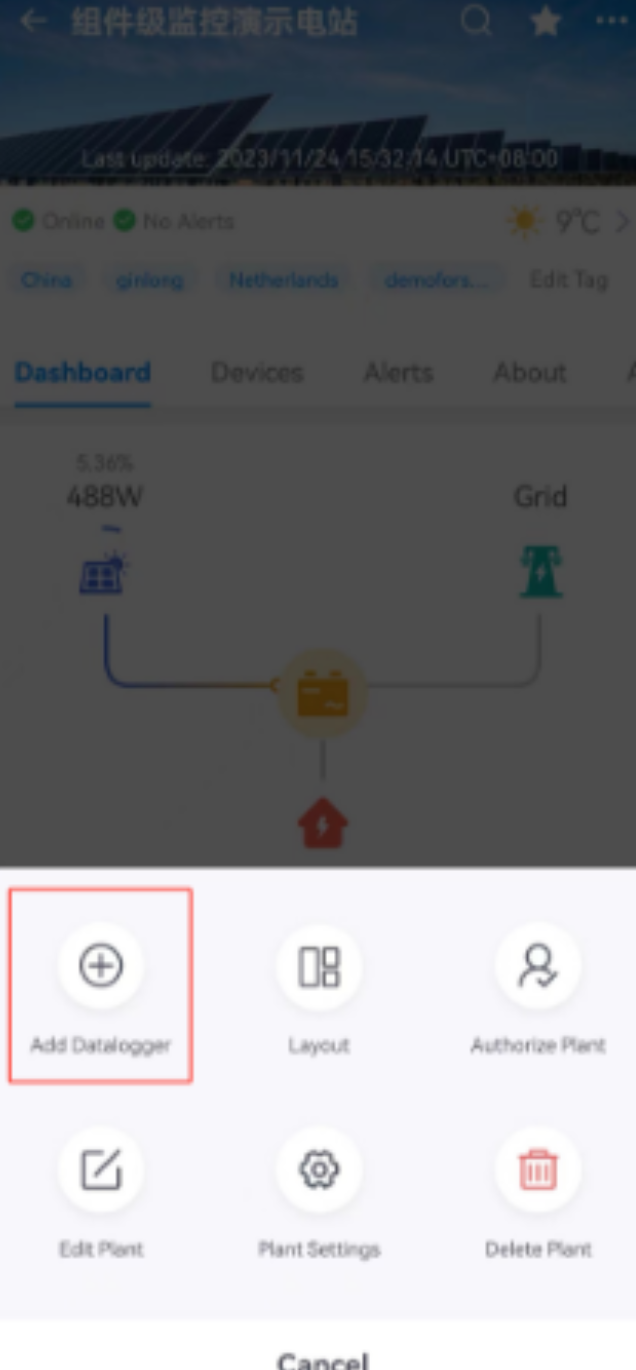

First, you need to select the corresponding plant data to add the datalogger device in the plant list, then click to enter the plant details interface, and click the“More”option in the upper right corner of the details interface again to display the function entrance of【Add Datalogger】.

User operation guidance

Step 1: Scan/Enter Serial Number

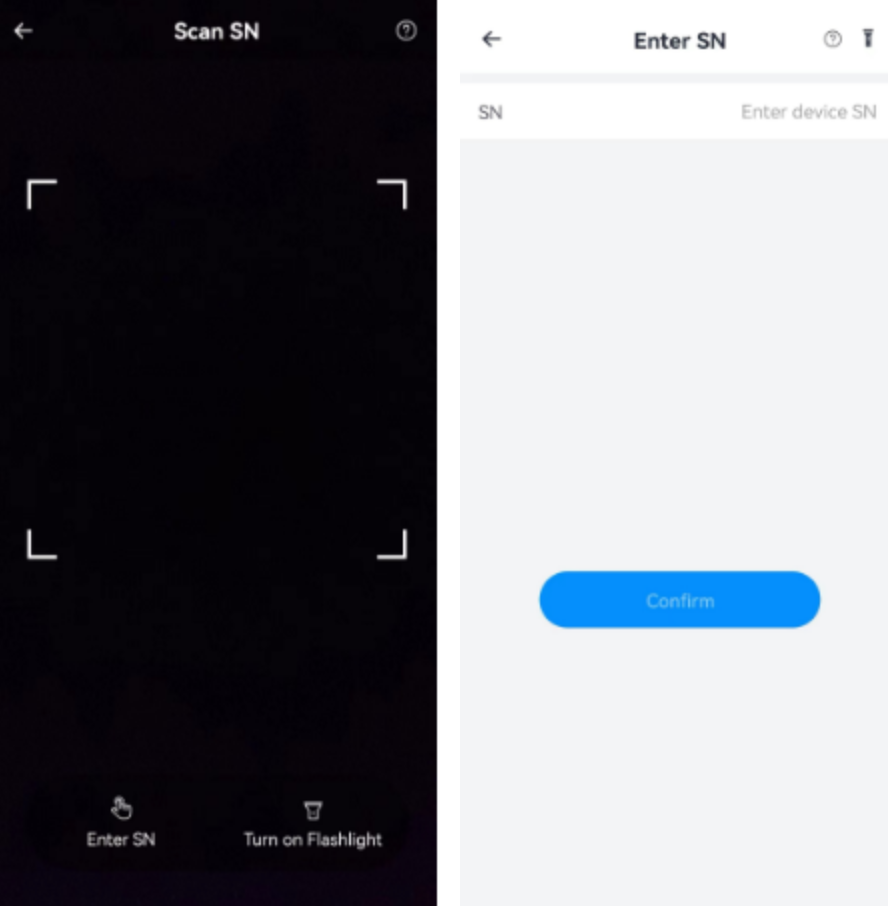

After selecting 【Add Datalogger】, you will jump to the “Scan Serial Number" page. You can choose to add a datalogger by scanning the serial number, or you can choose to add a date logger device by entering the serial number.

Note: The device serial number is usually located on the packaging box of the device. If the packaging box is lost, you can also find the code on the device itself!

Step 2: Select WiFi configuration

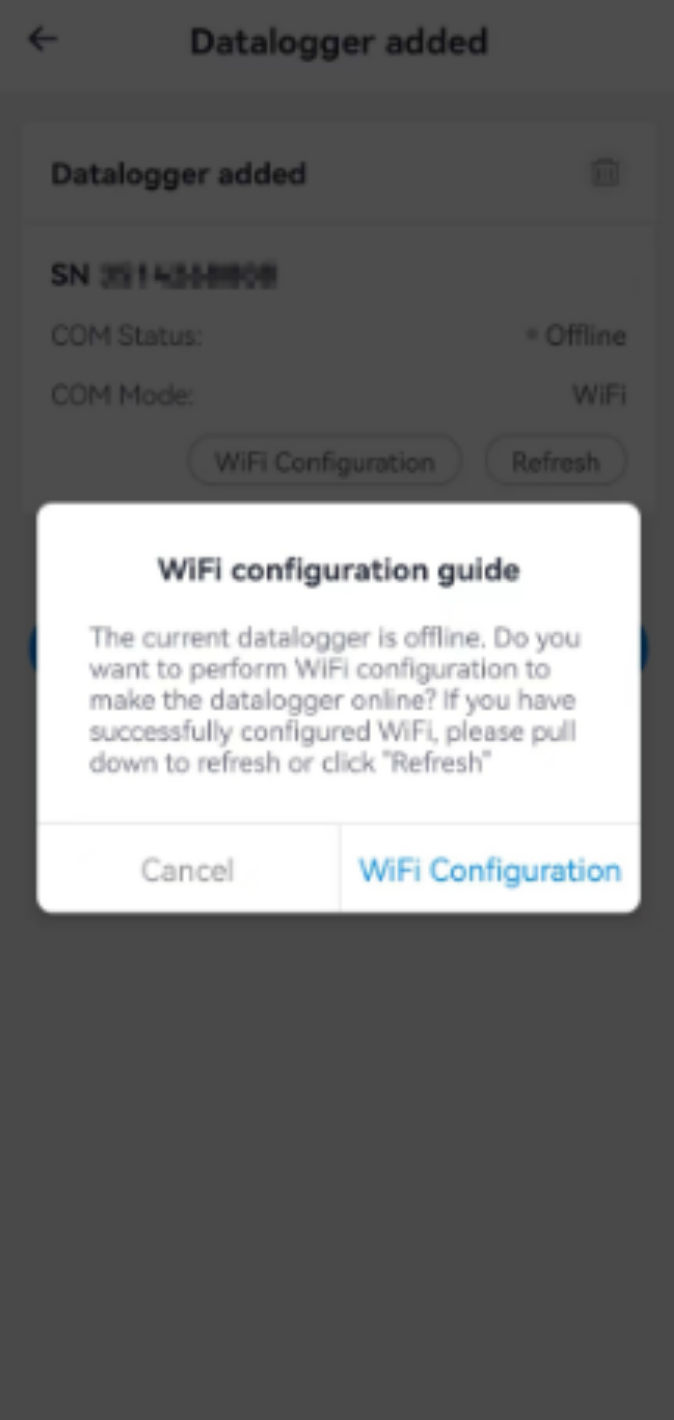

After completing the datalogger SN access, if the current datalogger is offline, you can choose to perform WiFi configuration to make the datalogger online. If you have successfully configured WiFi, please pull down to refresh or click “Refresh Status".
