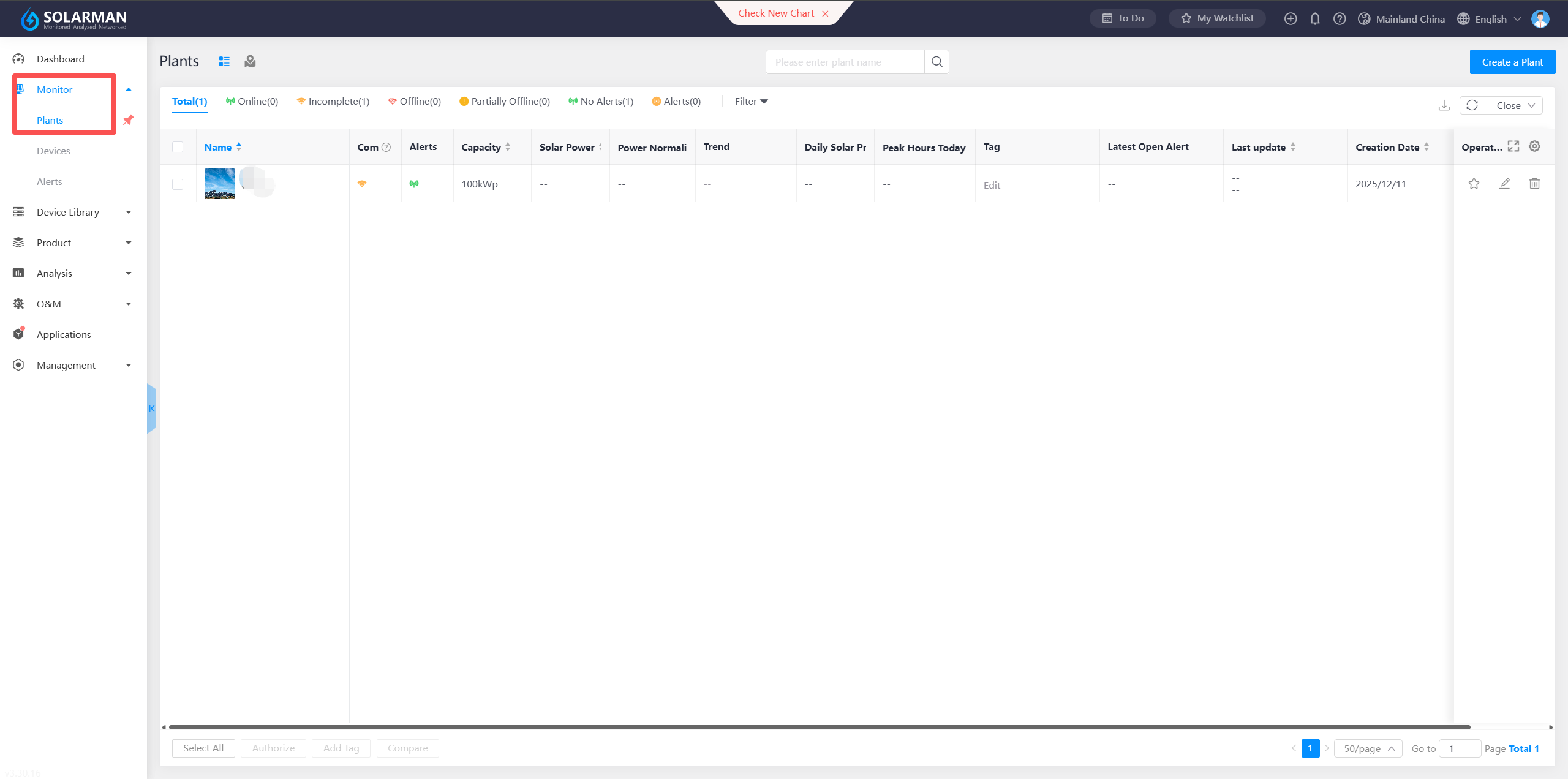

1. In Monitoring > Plants, Click the plant where you want to add a logger

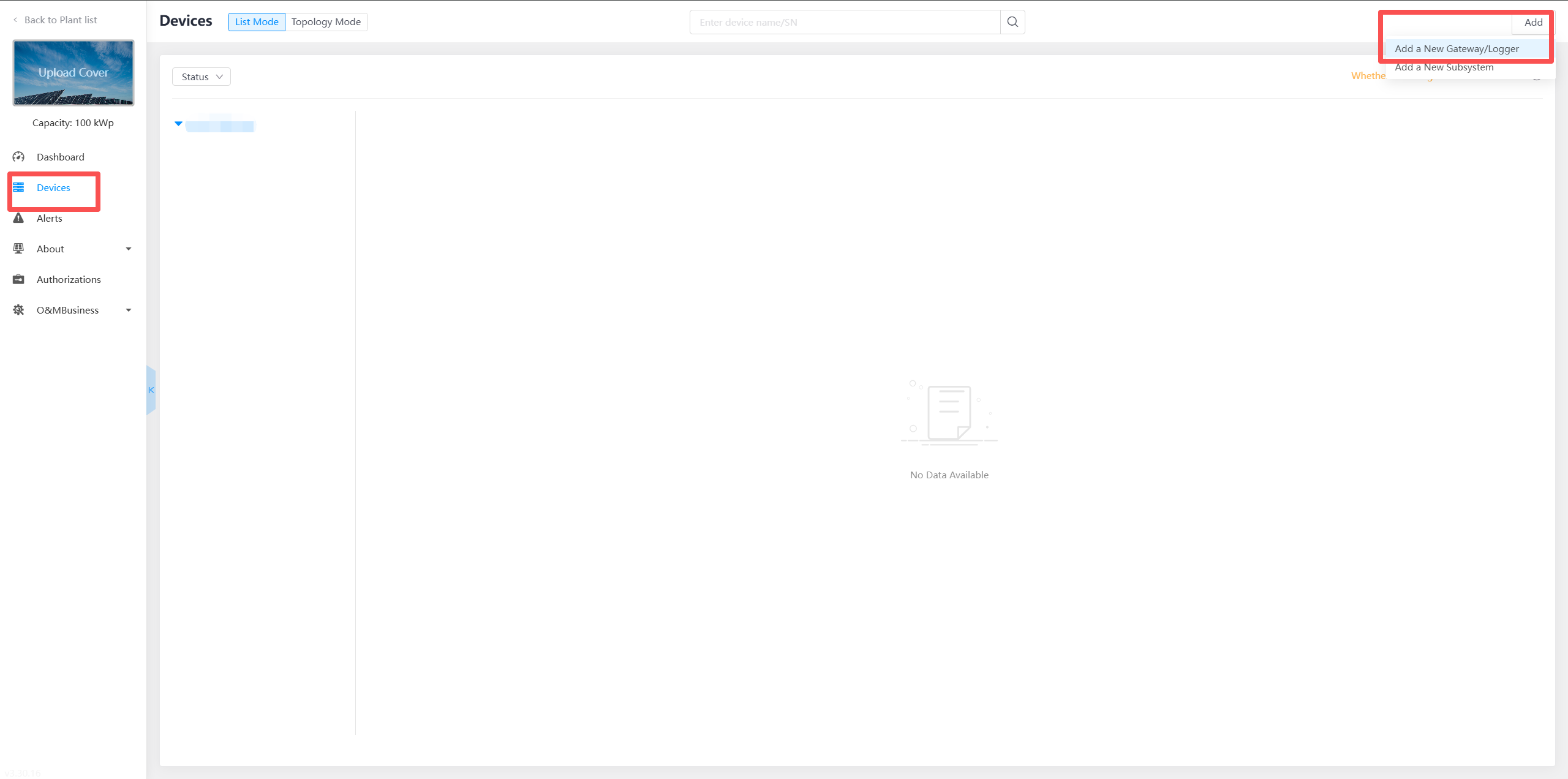

2. Click Add > Add New Gateway/Logger in the upper-right corner of the plant

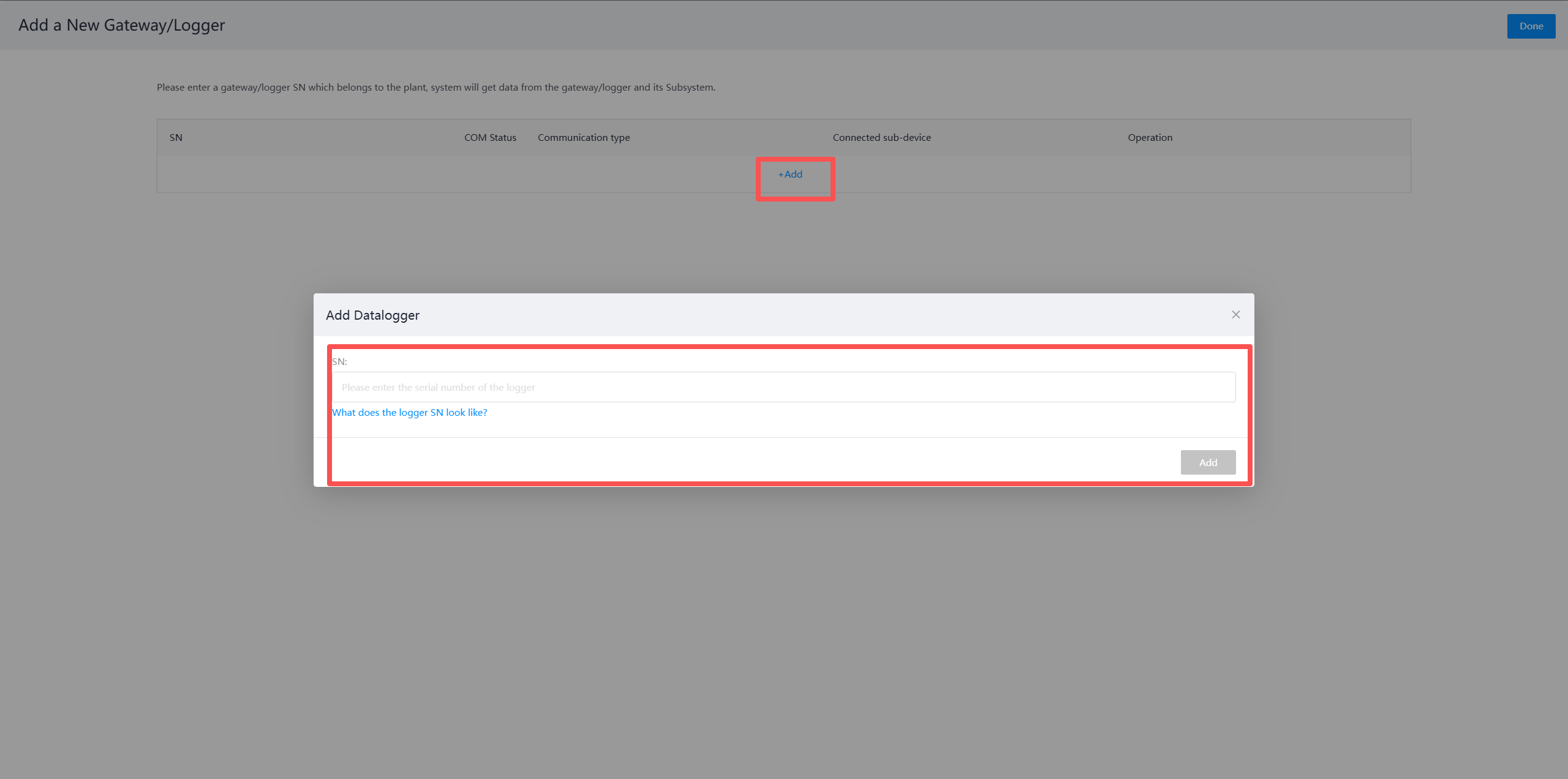

3. Click Add > Enter the logger's SN to complete the additio

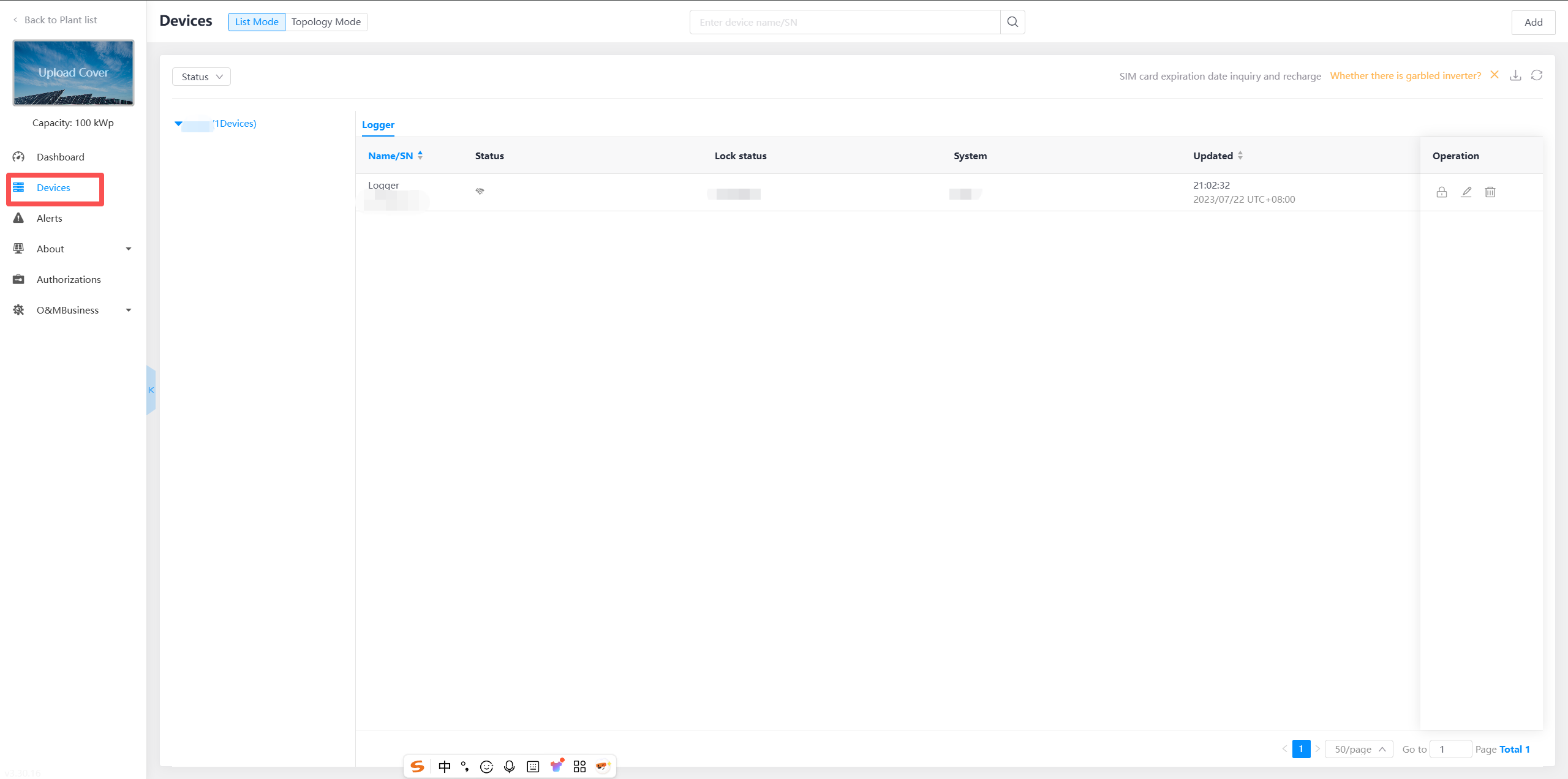

4.After finish adding, you can check logger data on "Device Details" page.

If the logger is WiFi type, please be aware of the following information:

1.Wi-Fi module is not capable of communication, which cannot transmit data directly.

2.If you wish your logger is capable of communication, it is required to operate networking configuration first. System will keep you informed after adding a device, then click "Go to Configure".

3.After networking configuration is done, it means the logger is capable of communication, which can transmit data to server. Then you can check plant data on SOLARMAN Business.

4.Due to network and server connection reasons, please wait about 5-10 mins to check the data after the configuration is done.

5.If the data cannot be displayed normally, please check router network or try networking configuration again.
