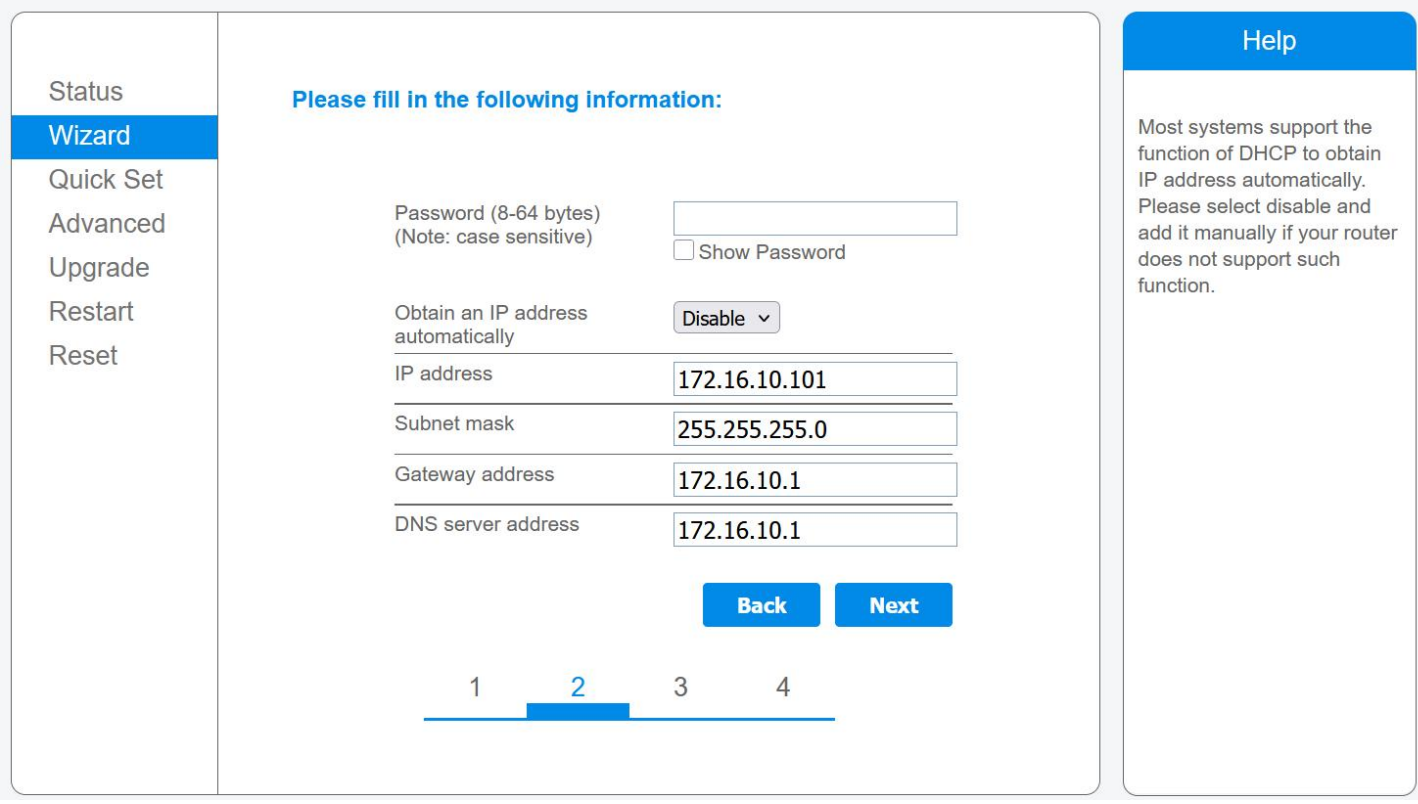

Fixed IP Settings

Common use case: After a device successfully joins the network, it frequently goes offline.

The steps are as follows

1、Open a wireless network.

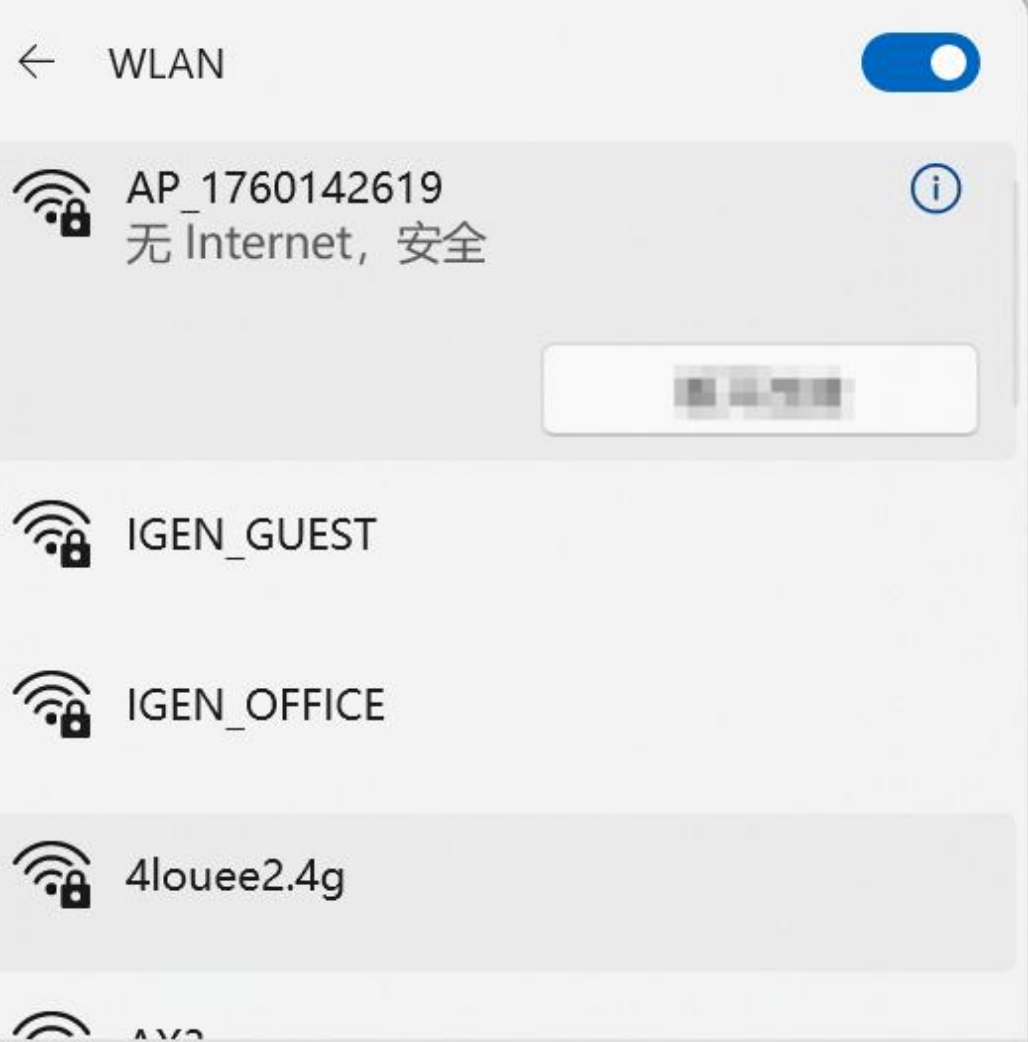

2、Select logger network (network name: AP+SN) and connect. The password can be found on the logger label, which are the characters behind PWD.

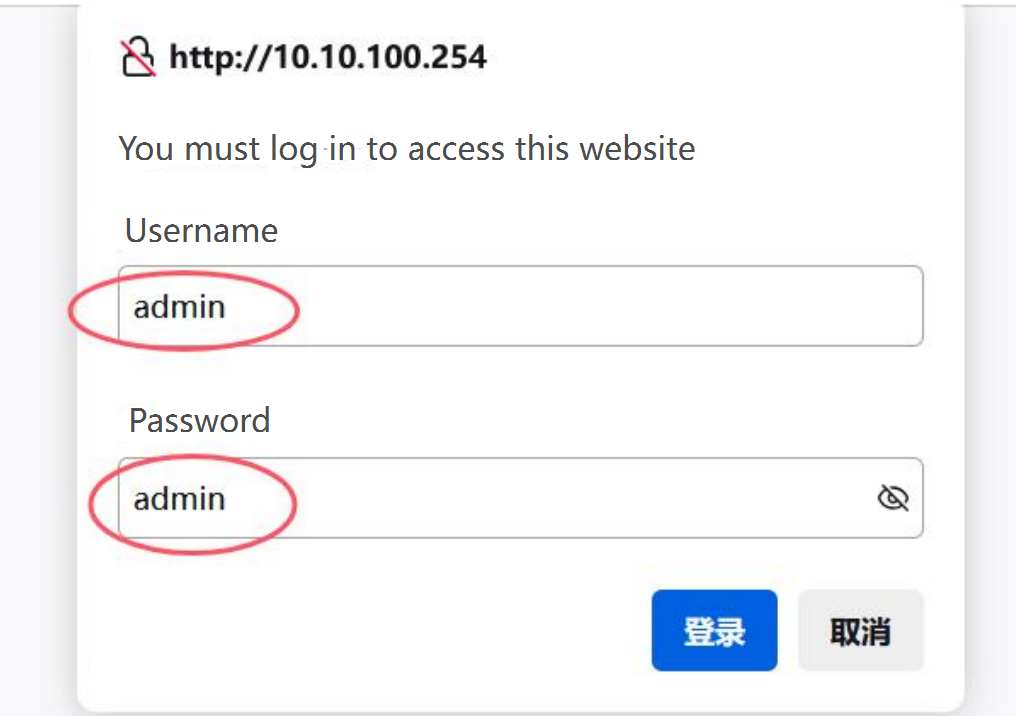

3、Open a browser and enter 10.10.100.254. Both username and password are admin.（Recommended browser: IE 8 +, Chrome 15+, Firefox 10+.)

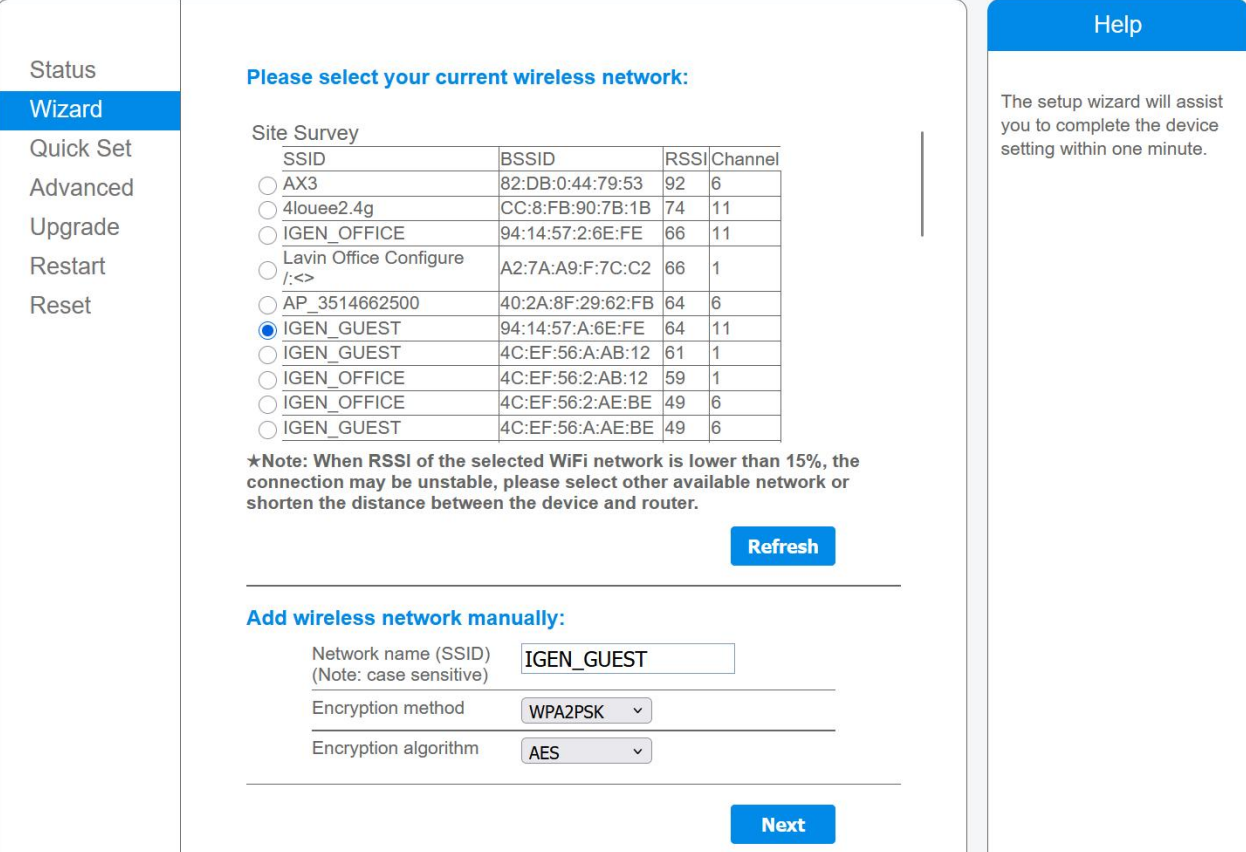

4、Go to Wireless Settings and search WiFi at site.

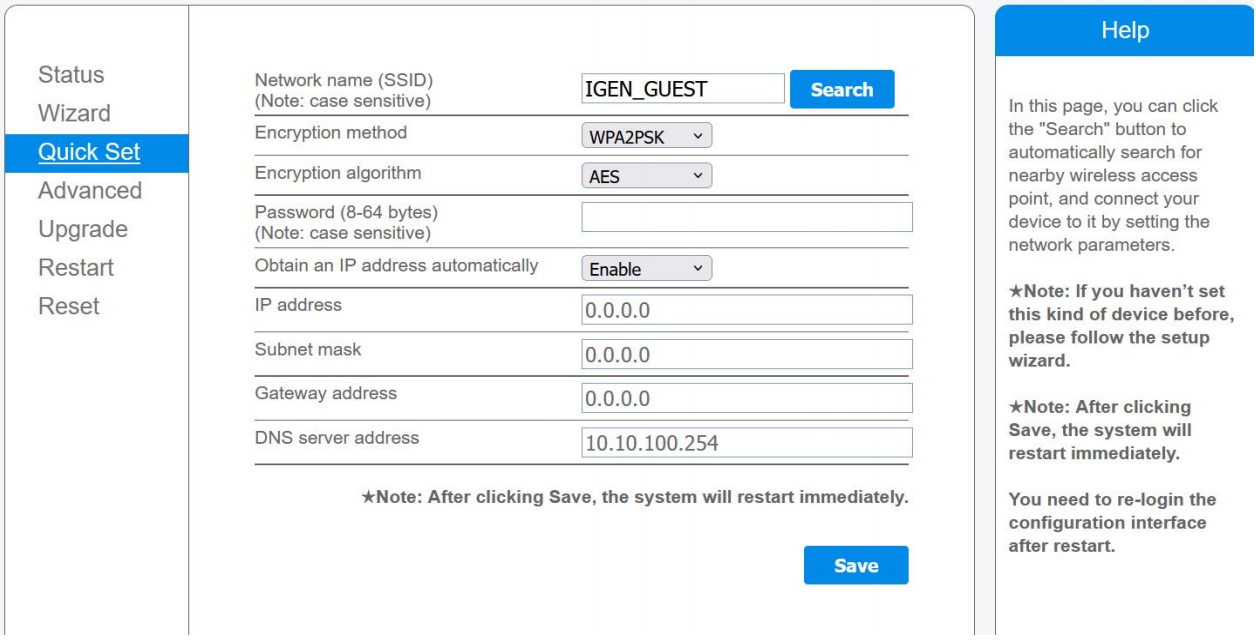

5、Connect to target router.

6、 Enter the password and click Next.
