Devices【SOLARMAN Business APP】

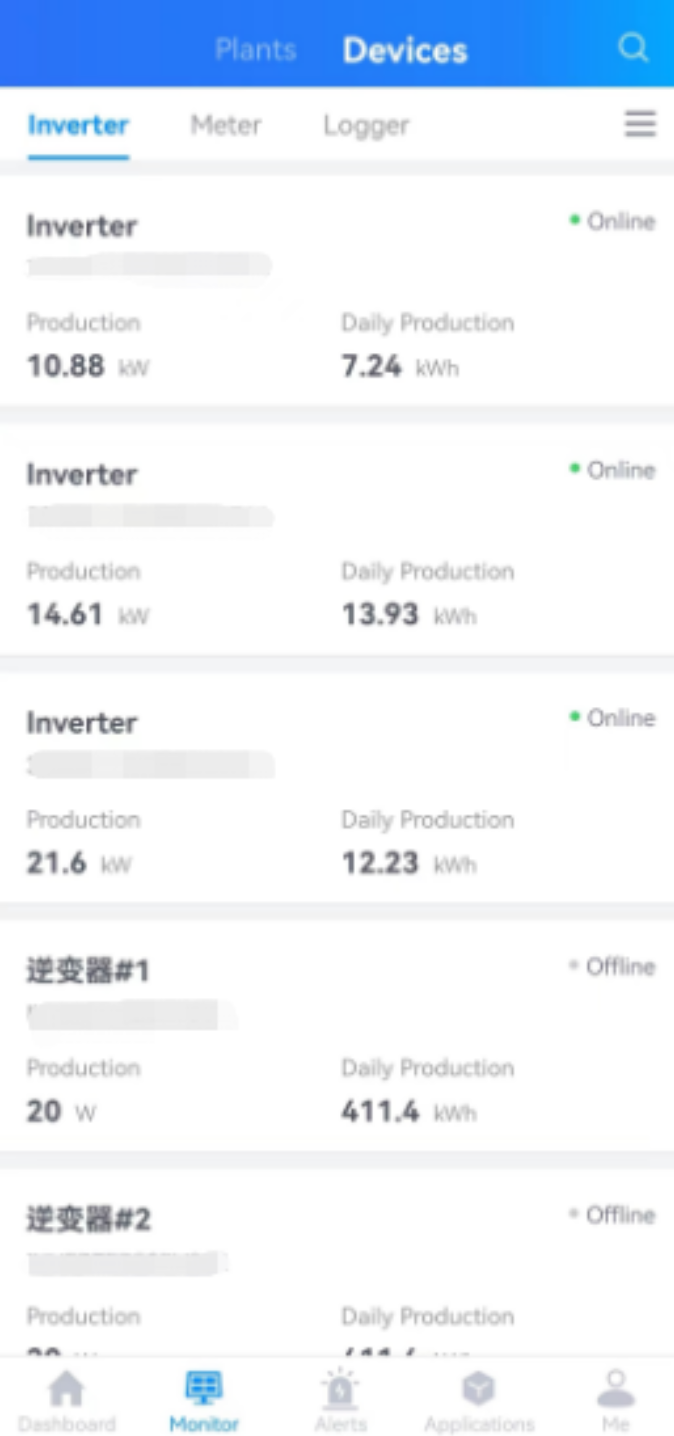

The 【Devices】 module can summarize and display the device data information of the completed added plant for management. It supports the functions of device query, user-defined type, viewing the system and device details, editing the device information, and exporting/refreshing the device data, so that you can directly view the operation of the device from the perspective of the device.
Functional Overview

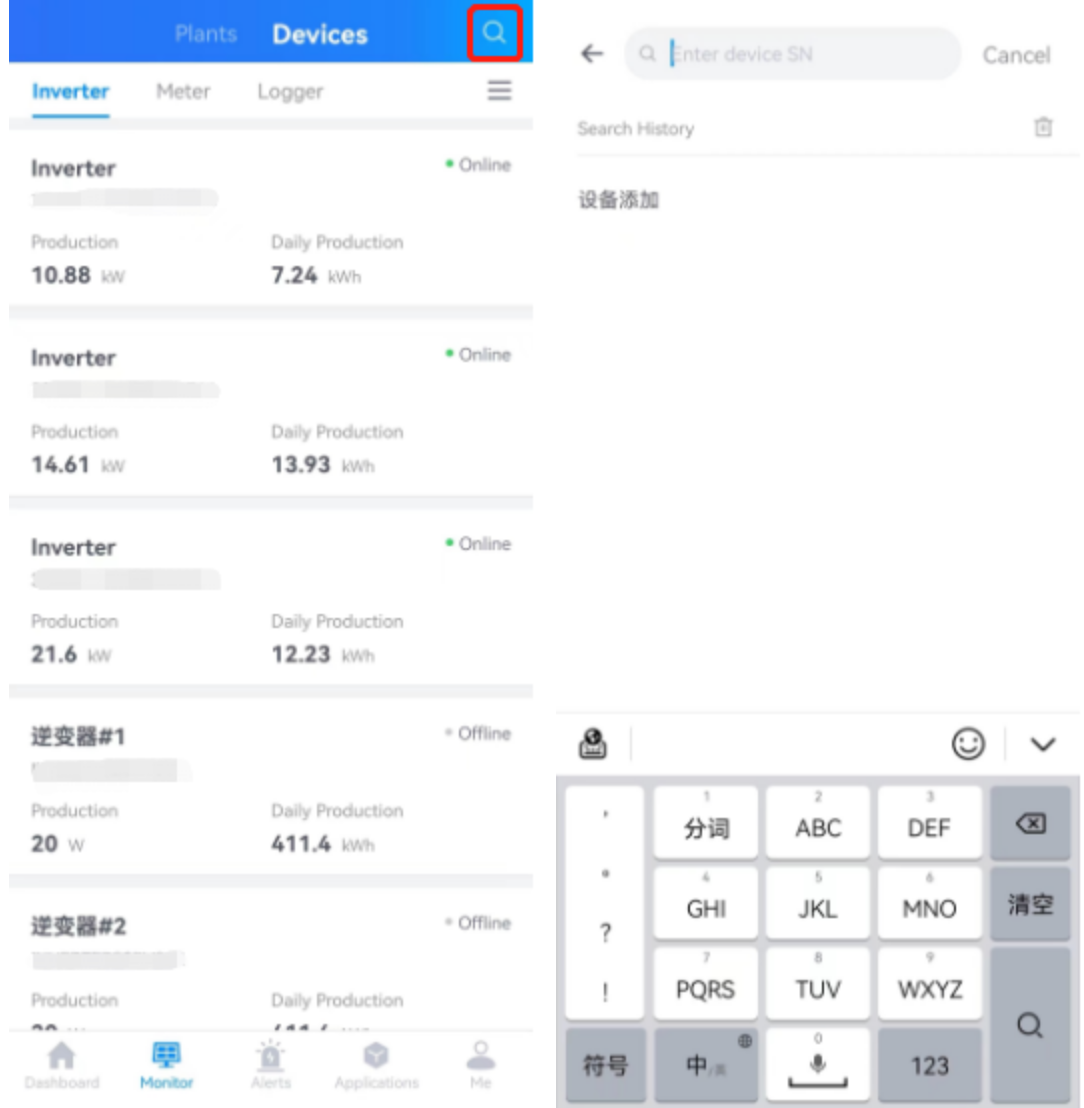

- Search device： Select the【Search】icon at the upper right corner, and enter the SN number of the device to query the device data. The system will conduct a fuzzy query based on the SN number of the device you entered to quickly obtain the corresponding device data information, or search quickly through the history, as shown in the figure:

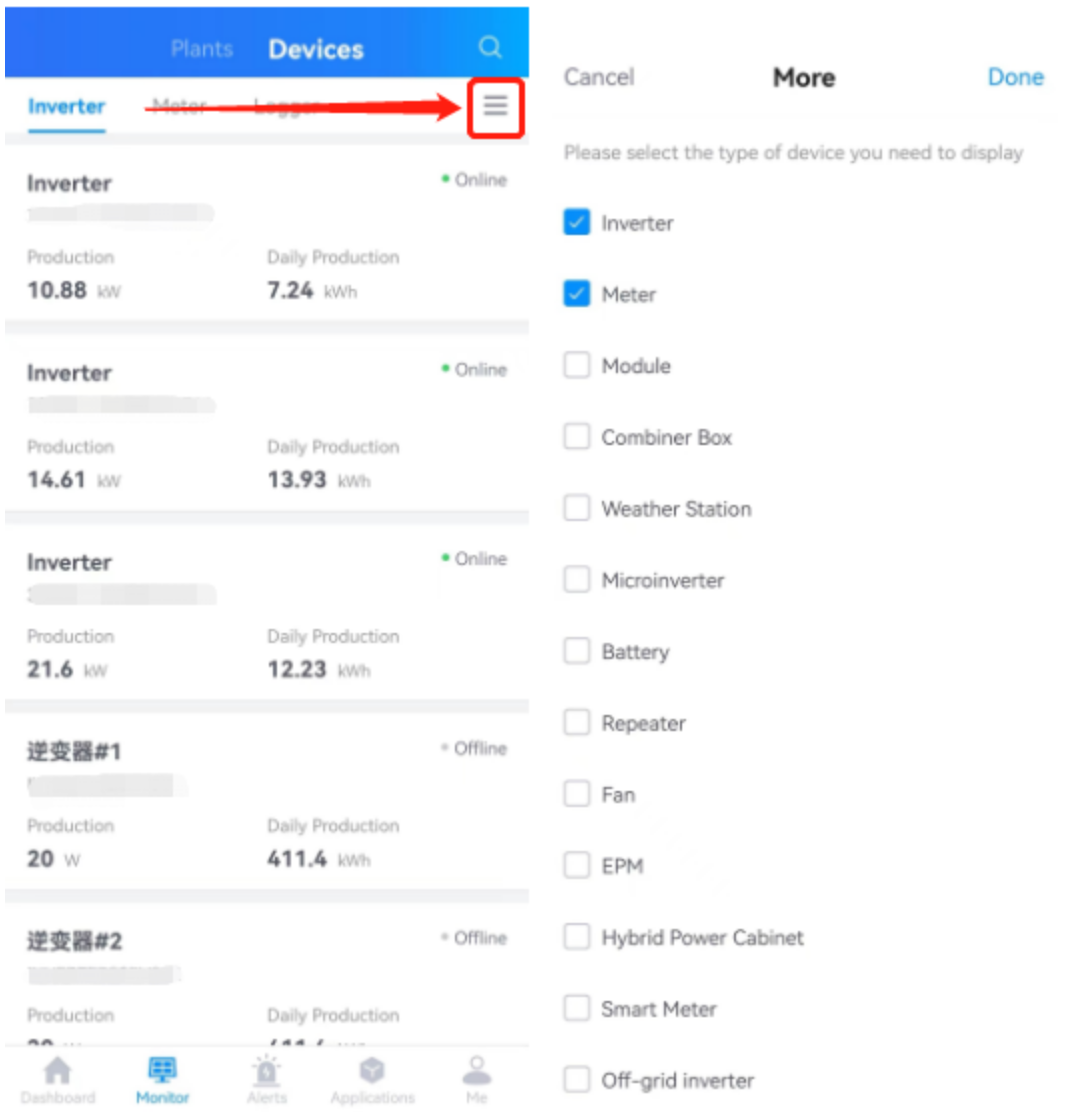

- Custom Type： The system will preset three types, namely Inverter, Meter and Logger, to facilitate switching and viewing the corresponding device data information. If you want to add other device types, you can select【More】 in the upper right corner to jump to more pages. You can select the corresponding device type as required to complete the addition, as shown in the figure:

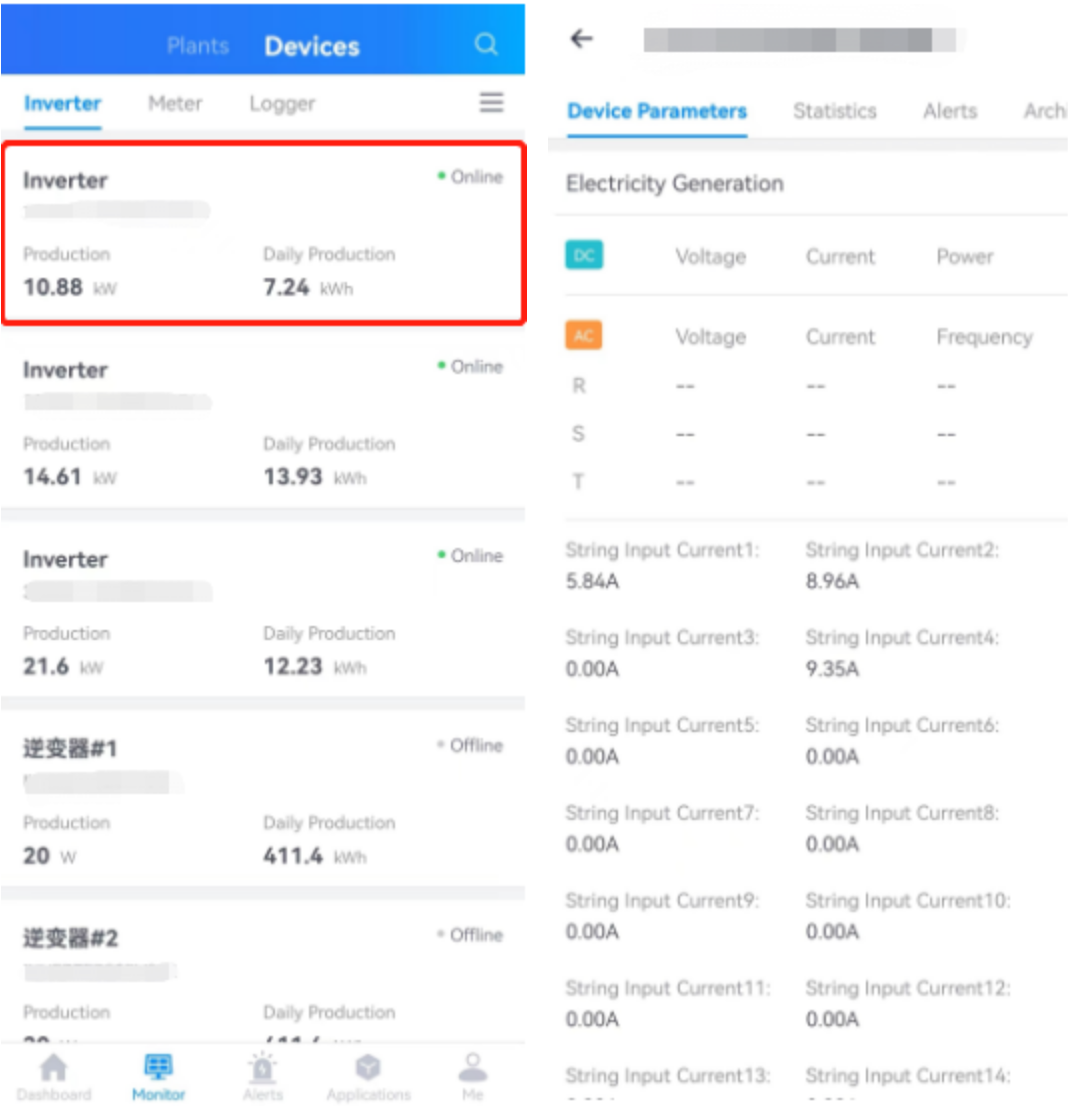

- Device details： Select and click the corresponding device data in the list to jump to the details page of the device, where you can see the device details and perform corresponding operations, including the corresponding detailed data information of each module for the device, such as device parameters, data statistics, alarm information and connection information, as shown in the figure:
